SOLVENTFREE AMINE-CURED EPOXY FOR WATER TANK CERTIFICATED ACCORDING TO NSF/ANSI 61, MIL-PRF-23236D
TYPE
The two-pack solventless water tank coating based on Bisphenol A epoxy resin and polyamine resin with anticorrosive pigment.
USES

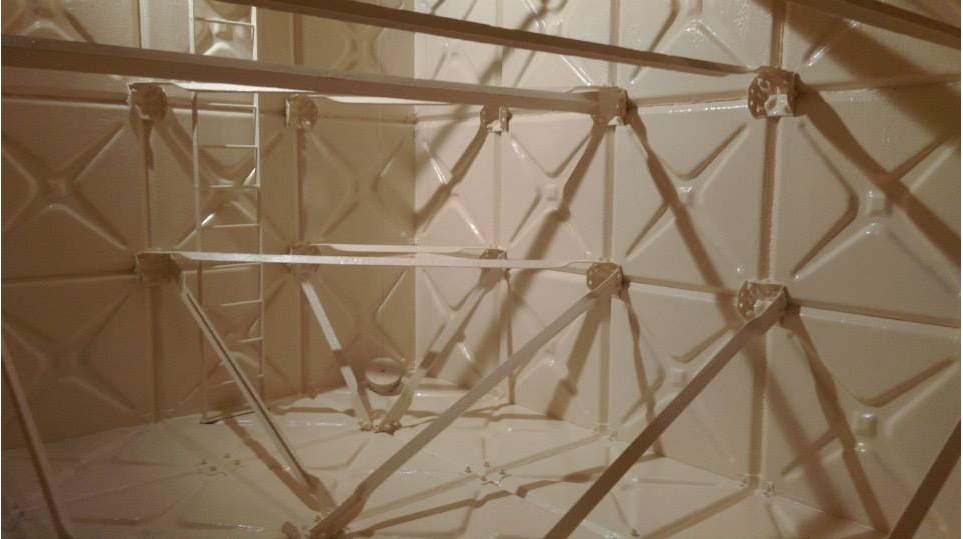

Used for new water tank or maintenanceold one to prevent rust, also suitable for steel and concrete structures, such as chemical plant, bridge, power plants, inlet and outlet water pipe, water ditch, sewer etc.
CHARACTERISTICS
1.Good adhesion with steel or concrete substrate.
2.Excellent resistance to water and corrosion.
3.Good compatible with cathode protection system.
4.No VOC emissions in the coating.
5.The paint for white color obtains NSF ANSI 61 certificate, suitable for potable water tank lining
COLOR
White
MASS DENSITY VISCOSITY
Above 1.4 Kg/L (mixture) Approx. 110 KU (mixture, 25°C )
DRYING TIME
Set-to-touch 4 hrs. Dry hard8 hrs. Fully cured 5 days (25'C)
Min. 12 hrs. Max. 10 days (25°C )
OPTIMUM FILM THICKNESS
Wet 150 microns Dry 150 microns
VOLUME SOLIDS
100% ( mixture)
THEORETICAL COVERAGE
19.2rri/Gal
MIXING RATIO
Base : hardener = 3 : 1 ( by wt. )
POT LIFE
Above 1 hr. (mixture, 25°C )
THINNER
No.1005 Epoxy Thinner (only for cleaning tools)
FLASH POINT
Above 100°C (mixture)
STORAGE SHELF LIFE
Minimum 1 year under normal storage conditions.
COATING SYSTEM
Steel: No.4567(white/150 µ) + No.4567(white1/ 50µ ), total 300 µ
Concrete: No.1073(25µ ) + No.4567(white/150µ ) + No,4567(white/150 µ ), total 325 µ
APPLICATION METHOD
Airless spray ( brush or roller is limited to small repair )
FOR AIRLESS SPRAY
NOTE
1. Adhered grease, dust and sand on substrate must be cleaned thoroughly. Steel surface must be blast-cleaned to ISO-Sa 2 1/2 or SSPC-SP-10, the roughness of surface must reach 30 microns and above.
2. Mix base and hardener according to the mixing ratio and stir thoroughly and then apply within 60 minutes.
3.Use 60:1or greater airless spray.
4. When applied, please wear gloves to avoid skin to touch, accidentally when the mouth, nose or eye touch, immediately wash with water.
5. When used inside tanks, sufficient ventilation must be provided.
6. When overcoating interval is exceeded, paint film surface must be roughened to ensure adhesion.
|
|
|
|
 |
|
|
|
